Shuliy recycling granulator machine for plastic

  • >=1 Sets
    $7,200.00
Model Number:
SL-125
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 10 Negotiable
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Granulating Production Line
Capacity:
3t/d
Place of Origin:
China
Brand Name:
Shuliy
Material:
PP/PE
Screw Design:
Single
Voltage:
380v
Power:
22kw
Dimension(L*W*H):
2000*1400*1600mm
Weight:
3200kg
Certification:
ISO
Warranty:
1 Year
Name:
Plastic Recycling Granulator Machine
Raw material:
PP PE
Final product:

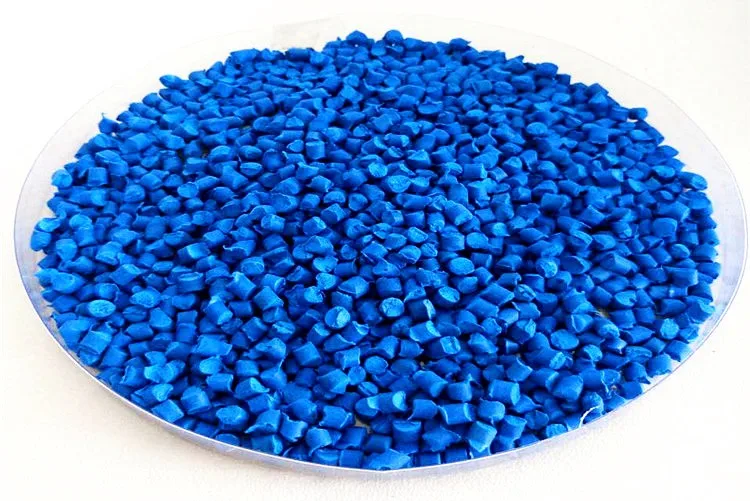

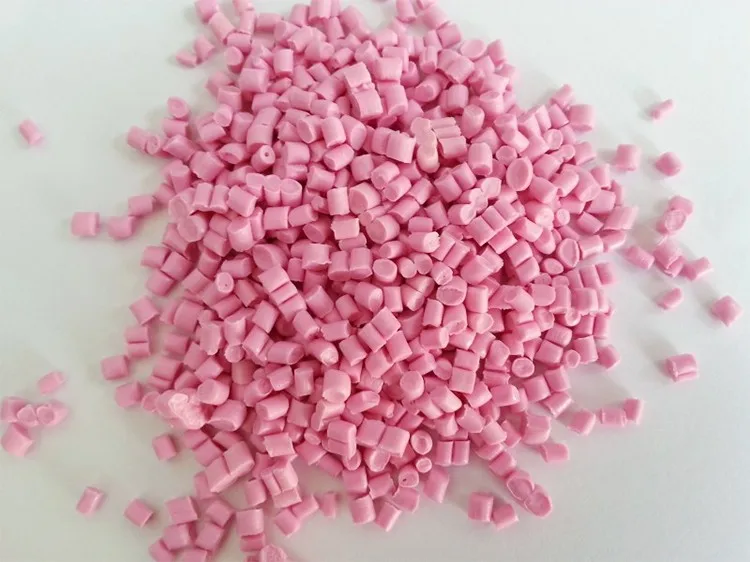

PP PE Pellets
Color:
Customer Choice
Material Processed:
PE Film PP Woven Bags
Keywords:
Plastic granulator
Machine Type:
Single Stage Pelletizing
Usage:
granulator machine for plastic
Function:
plastic recycling granulator price
Application:
plastic granulator machine recycling
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Outside package:Standard export wooden case
2.Inner package:Stretch film
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 10 To be negotiated
Brief Introduction

Brief Introduction of plastic granulator

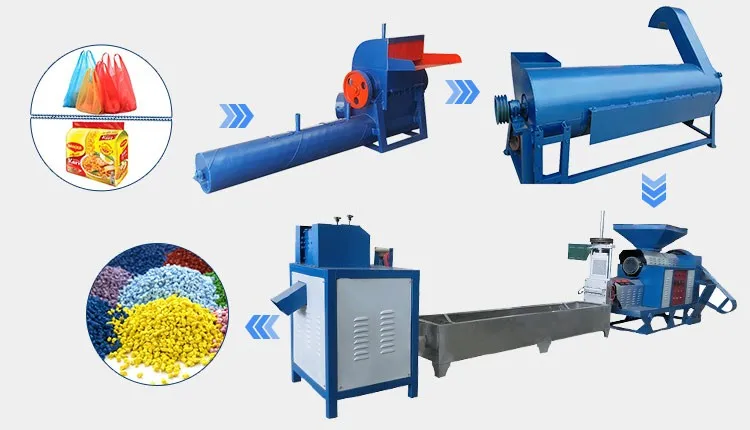

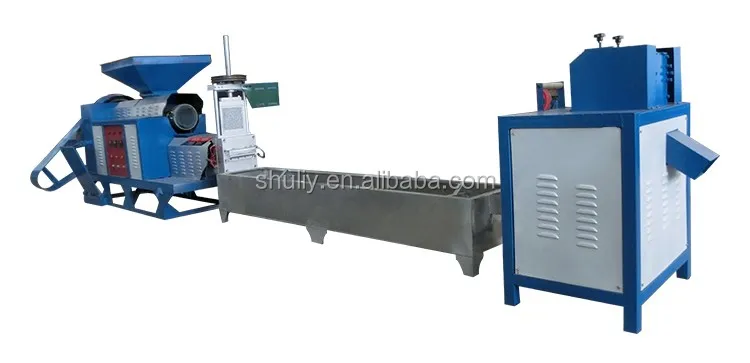

This plastic granulator is full automatic processing line.It is suit for PP,PE granulator.The flow chat is:Plastic washer and crusher,Belt conveyor,Dewater,Automatic feeder,Granulator, Cooling and cutting machine.The whole  plastic granulator processing line adopt good quality carbon steel,which has long service life.We offer PLC control table,it is easy to control whole plastic processing line.And just need 1 or 2 worker when processing.We have difference capacity,you can choose suitable one according to your manufacture.

Feature of plastic granulator

1.PP,PE automatic granulator line.Two worker is ok.

2.Difference capacity of plastic granulator .We offer customized model.

Detail Information of plastic granulator

Name
Power
Capacity
Belt Conveyor
2.2 kw
500 kg/h
Plastic washer and crusher
22 kw
500 kg/h
Plastic dewater
7.5 kw
500 kg/h
Automatic feeder
3 kw
500 kg/h
Plastic granulator
22 kw
3000 kg/d
Cutter
1.5 kw
500 kg/h

1.Belt Conveyor

This machine convey the raw material,like PP,PE,PET bottles into washing and crushing machine.The conveyor is designed specifically for PP,PE,PET materials.For ease of movement, there are wheels under the machine.The wheels of the machine are made of polyurethane and each wheel can withstand a weight of 1-5 tons.

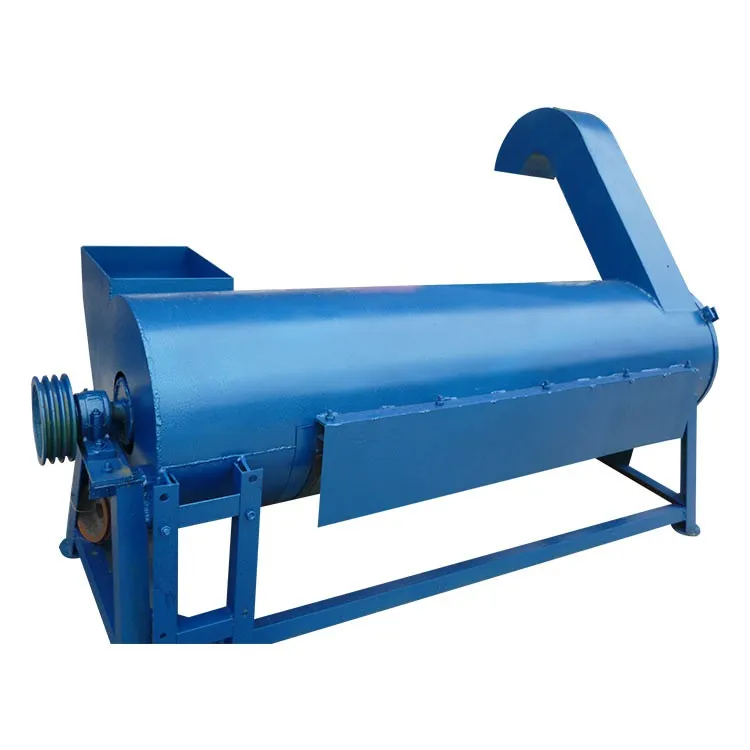

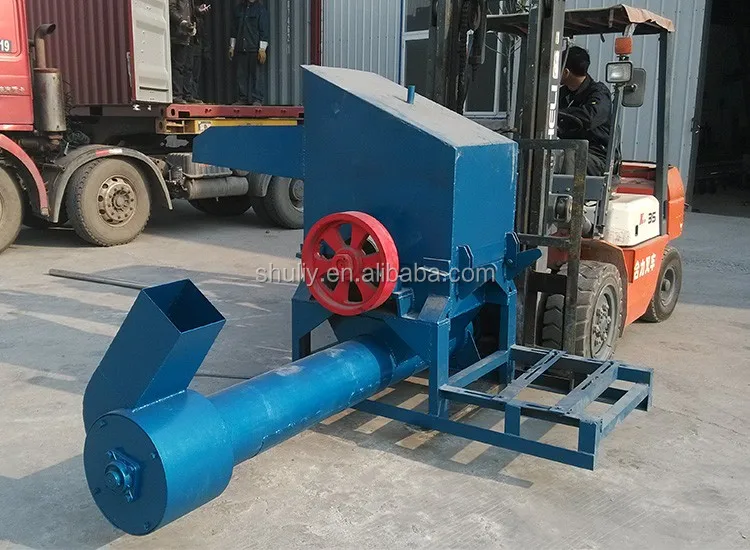

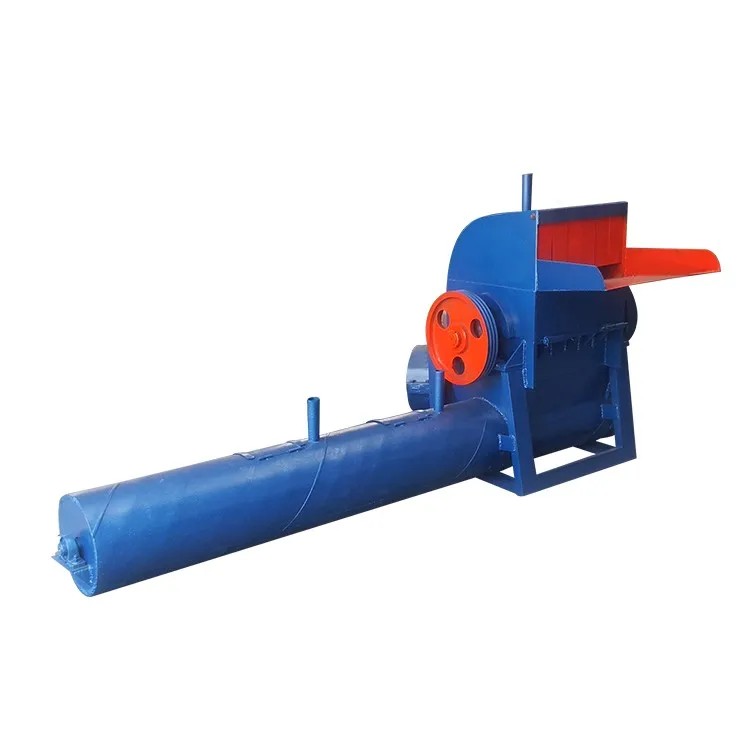

2.Plastic washer and crusher

This is plastic washing and crushing machine is the first step when processing plastic granulator.Machine has two function:Washing and Cleaning.It can deal with material like PP,PE and PET bottles.The motor adopts pure copper battery core, stable performance, stable operation, low noise, low vibration, low operating temperature and long service life.

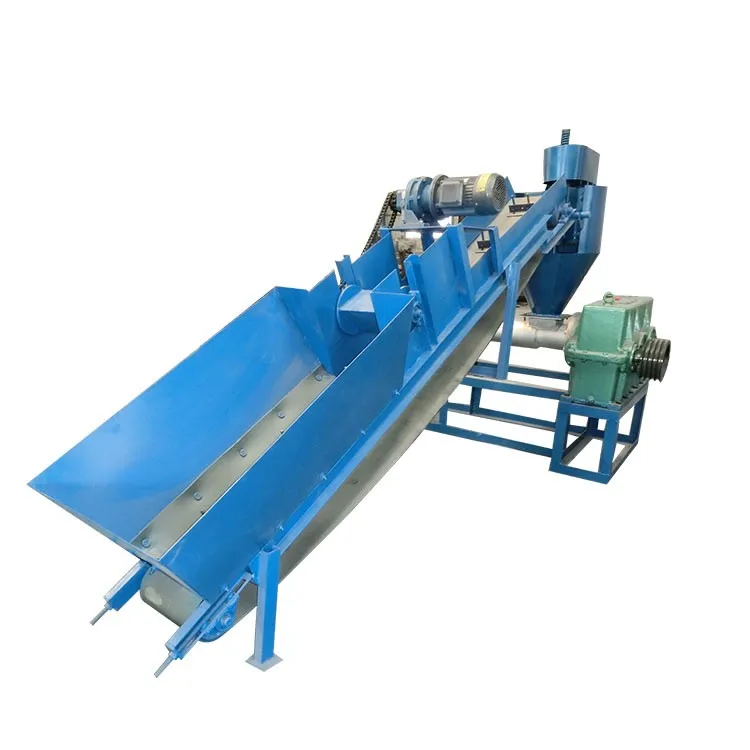

3.Plastic dewater

This dewater machine make wet crushed plastic dry.Because too wet crushed plastic can not granulator directly.Also it is harm to machine. This machine adopts the centrifugal working principle. After the material is turned over at high speed inside the machine, the filter is removed through the bottom of the machine to remove excess water.

4.Automatic feeder

After plastic dewatering machine,this conveyor connect automatic feeding machine.It put dry crushed plastic through feeding machine to plastic granulator.Ensure uniform feeding and keep the machine in continuous working condition.

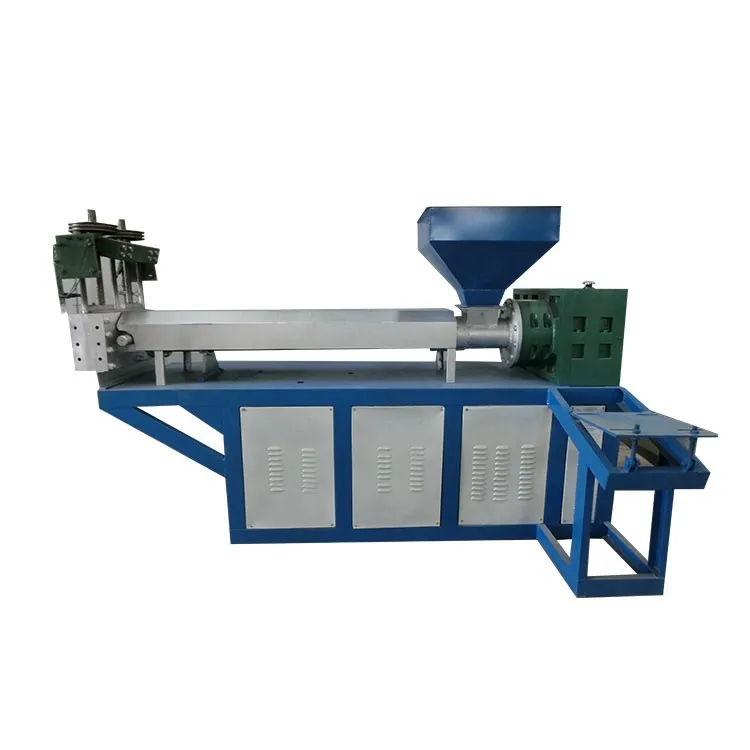

5.Plastic granulator

This plastic granulator melts the crushed plastic first, then pushes it through the screw.There has two heating way,one is heating circle,other is Electromagnetic heating.The machine is equipped with a special reducer motor,Through the national 3C certification, the national energy-efficient product certification, to ensure that each product meets the standards.

6.Cooling machine

This is water tank,which is used cooling plastic.The cooling machine made by good quality 304 stainless steel.It has long service life. After cooling,the plastic will be sent to plastic cutter.

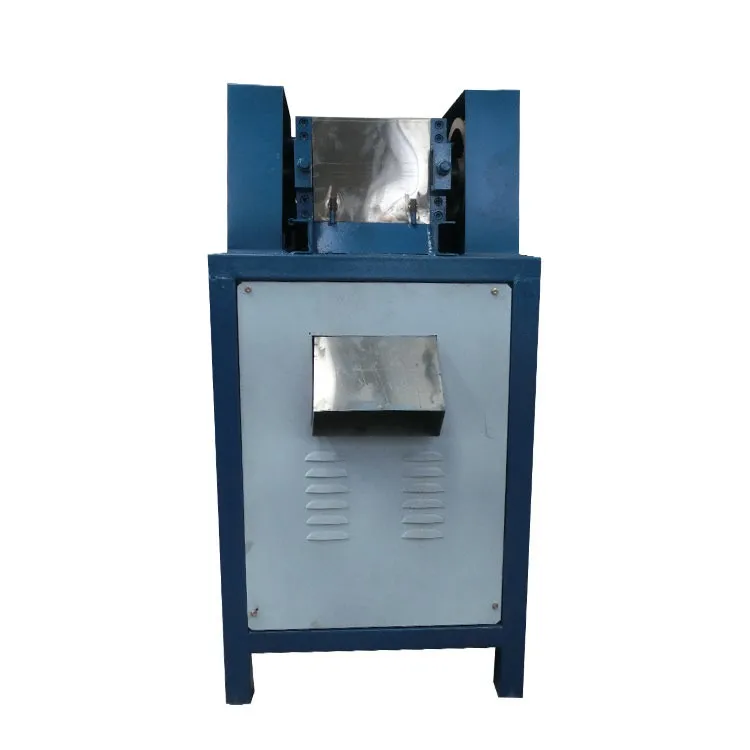

7.Plastic cutter

This plastic cutter adopt good quality carbon steel,the roller material is rubber,which not make the plastic deform.The motor is full aluminum wire.Light weight and small footprint.After cutting machine,you will get plastic pellet.

Packing &Shipping

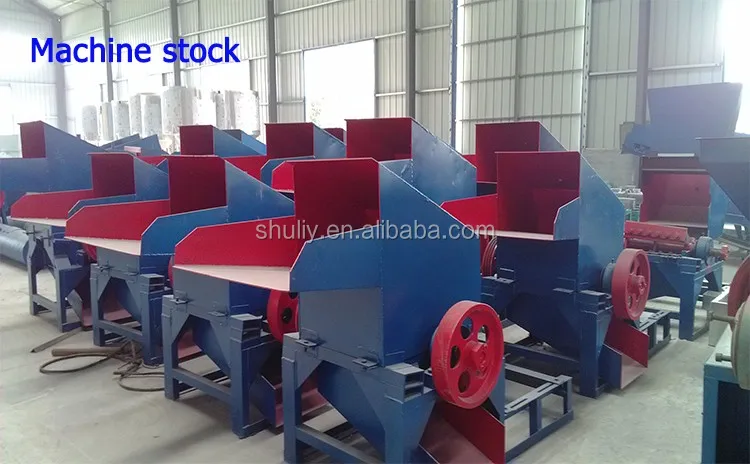

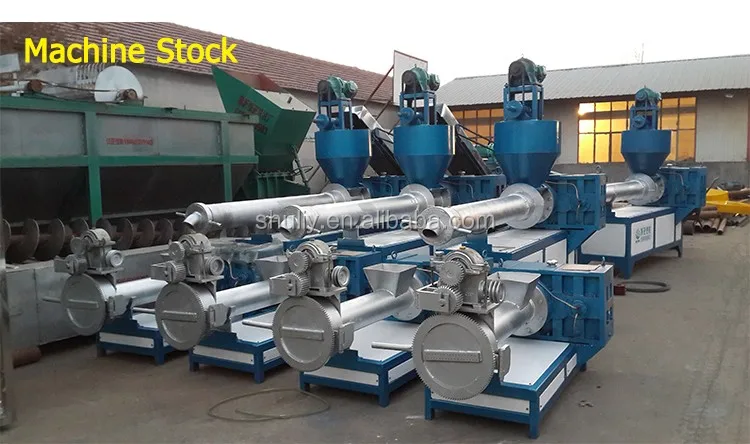

Workshop
