Scrap copper wire stripping machine mill berry copper wire scrap 99.99% copper wire recycling machine

FOB Reference Price:Get Latest Price
$8,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 30 Negotiable
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Shuliy
Model Number:
SLCM-600
Type:
Copper Wire
Copper Content:
99%
Name:
Copper Wire Recycling Machine
Color:
Customer Required
Application:
Electrical Appliances
Usage:
Separating Copper
Shape:
Construction
Purity:
CuZn20/30/40%
Origin country:
China
Appearance:
Bright Bare Stripped Wire
After sales service:
1 year
Function:
Crush Wire
Packaging & Delivery
Packaging Details
copper wire recycling machine packing in wooden case
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 30 To be negotiated
Video Description

Copper wire recycling machines

Product Description





Application

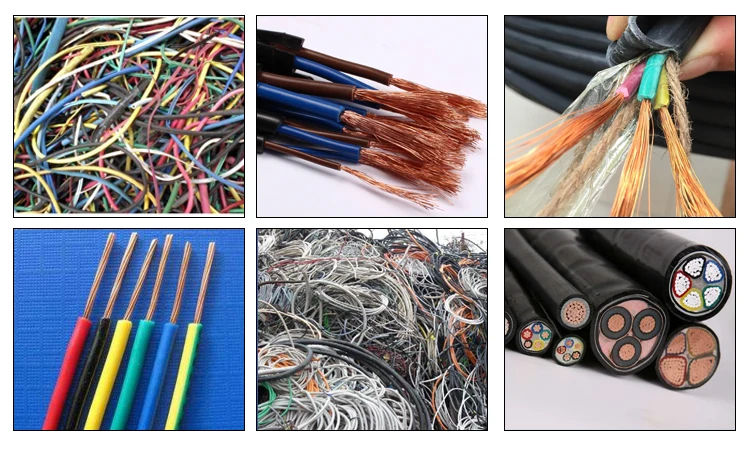

The Scrap Copper Wire Separator Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameterer is 0.3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication calbe, etc.

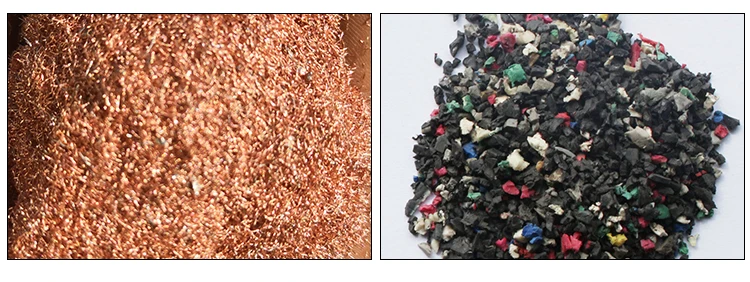

Final Product

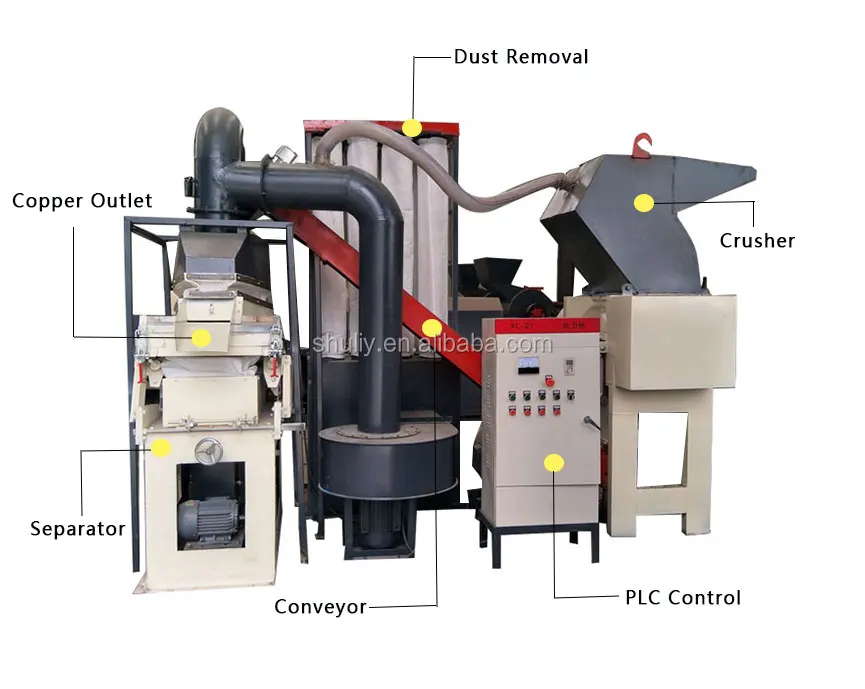

Introduction of copper wire recycling machine

Various kinds of Φ 20mm in each gear cables and under strip line machine is not suitable for processing various impurity cables, crushing processing after, earthquakes with water separation, screen separation. Copper and plastics can be separated completely, and achieve the purpose of utilization, with high economic efficiency. No dust and no secondary pollution. In addition, this device is the overall modular structure, easy to install and debug, and Transport (Customers can produce plugin power bought later), performance and stability.

Parameter of copper wire recycling machine

ModelSLCM-600
Capacity400--500
Main Power37kw
Fan Power3kw
Vibration motor0.25kw
Clearing dust motor3kw
Dimension3500*1900*2700 mm
Weight3000kg

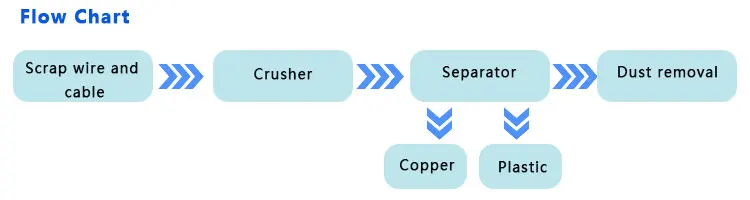

Working process of scrap copper cable granulate machine

1. Starting Please make sure all the copper wire recycling machine are in good condition. Before getting started, please keep the machine unloaded running for 5-10 minutes.

2. Feed inlet Please clear up iron from the mixed cables, avoiding damage to crusher blade.

3. Fine crushing If there is any abnormal noise, please stop and check the crusher. Change different size screen, if the copper granule is too fine or too much copper without separating from plastic.

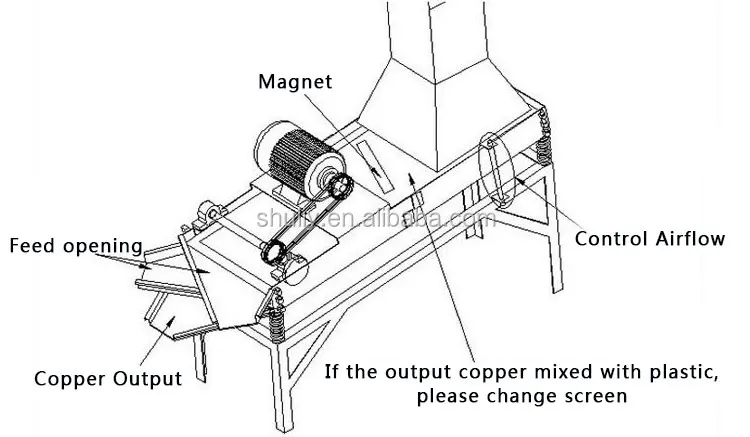

4. Vibrating separator After curshed, the mixed material will be delivered to vibrating device. The copper fro vibrating separator is complete copper without plastic, while the copper clad from the opposire discharging hole needs to be second crushed.



For the small capacity, the cable wire raw material can be put into the all-in-one machine directly, after crushing, then the air separtor will make the copper and plastic suspended on the screen. Then the Copper will be separated from the plastic by weighting method and the friction force which produced by the Surface of the mesh.

For larger capacity, the cable wire raw material will be firstly put into the shredder, then go into crusher to get the small pieces wires, then the air separator will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. The copper wire recycling production line including the crushing system, air separator system, dust and fiber collection system and high voltage electrostatic separator.

Feature of copper wire recycling machine

1. Compact structure and reasonable layout, safe and reliable, easy to install.

2. Controlled by PLC. Continuous feed, intelligent operation, automatic alarm make it easy to operate and save your time and energy, to ensure the stable operation of the equipment.

3. The shredding machine adopts the high hardness main shaft, make it has more impact power when crushing materials. It is composed of micro cutting head and cylindrical tool rod, greatly reduces the wearing (blades).

4. The crusher, air separator and the pulse dust collector installed together, so the structure of the machine is easy to move and transport.

5. The second crusher adopts alternate blades leading to high productivity, low noise and stable running.

6. This production line use the air separator and the high voltage electrostatic separator together, to improve the recovery rate up to 99%.

7. Back feeding system will crush the unfinished material again, which guarantee the totally separation of copper and plastic.

8. No dust outlet, the dust separation rate can reach up to 99%.

9. The blade and screen adopts special wear resistance and high toughness alloy material, which improve the service life and reduce the production cost.

Packaging & Shipping



Our Services

Certificate



Company Information

Zhengzhou Shuliy Machinery Co.,Ltd ,established in 2010,is a professional manufacturer.We located in Zhengzhou city with convenient transportation. In recent years, our company has introduced a series of advanced equipment including plastic pellet making machine,Egg tray making machine,Hydraulic Baler,Fiber Extracting machine,Fertilizer machine,Copper wire recycling machine,Shredding machine etc. In addition, we have obtained ISO,QUALITY,CE certificates.Our products are also exported to clients in such countries as Nigeria,Cameroon,Pakistan,Congo,Ghana,India,Philippines,Malaysia,Indonesia,Canada,Australia,Congo,Nigeria,Sudan,Saudi Arabia,,India,Russia,Mongolia,Kazakhstan and other countries.

We also welcome OEM and ODM orders. More request, you can talk to our customer service center about your purchasing requirements.
