Farm granary grain products vertical low temperature grain dryer

  • >=1 Sets
    $15,000.00
Model Number:
SL-10
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Batch type recirculating
Use:
Grain Dryer
After-sales Service Provided:
Engineers available to service machinery overseas
Certification:
ISO
Place of Origin:
China
Brand Name:
Shuliy
Condition:
New
Application:
Cereal Grains
Name:
Grain Dryer
Product name:
Rice dryer
Usage:
cereal drying machine
Color:
Customer Required
Capacity:
>800 kg/h
Raw material:
Carbon Steel
Power:
5.5kw
Weight:
4000 kg
After-sales Service:
1 year
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Our grain dryer Packed as:
1.Inner package:Stretch film
2.Outside package:Standard export wooden case
If packed in whole container,only stretch film.
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated

Farm granary grain products vertical low temperature grain dryer

Product Description



Product Description of Grain Dryer

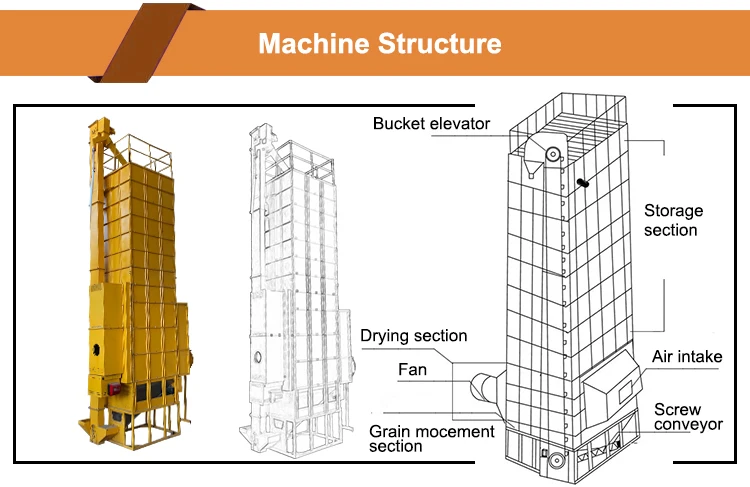

This machine is mainly used for drying grain. Drying grain belongs to continuous work. It has higher requirements on the stability and continuous operation of the dryer during use. The material requirements for the material selection and wear parts of the dryer are very high. The batch type circulating dryer produced by our factory belongs to the low-temperature energy-saving drying equipment. It has the characteristics of convenient installation, simple operation, low noise, low energy consumption and low power. It mainly dries high-quality grain and meets user needs.

Application of Grain Dryer
Rice, wheat, barley, buckwheat, barley, corn, soybean, mung bean, broad bean, red bean, black bean, sorghum, millet, rapeseed, sunflower seed, etc.

Features of Grain Dryer

1. High height drying layer. The drying layer is 2.7 meters high, 1.3 meters higher than other type grain drying equipment,the drying output is large and the effect is good.
2. Stainless steel internal material. Our grain dryer internal material is made of 316 stainless steel, which is clean and has a long service life.
3. Painted body. The grain dryer uses the electrostatic spray coating paint process, which has the characteristics of heat resistance, wear resistance and corrosion resistance.
4. Simple operation. It takes more than 4 people to work when operating other types of grain dryers; our grain dryers only need one person to work.
5. Drying effect is good. When drying the grain, the drying effect is ensured to be uniform, and the grain breaking rate is low, and the wheat fiber structure is not damaged when the wheat is dried.

Model

SL-10

SL-20

SL-35

Dryer Type

Batch type recirculating

Processing Capacity

>800 kg/h

>800 kg/h

>800 kg/h

Dryer Volume

20 m3

37.5

62

Overall Weight

4000 kg

6000 kg

9500 kg

Overall Dimension

2900*4050*10500mm

2900*4050*12200mm

3500*4400*13330mm

Power

6.5 kw

10 kw

15 kw

Fuel

Coal,Rice Husk,Wood Chips,Gas,Diesel,ect

Reduction Moisture

0.5-0.8 %/h

0.5-0.8 %/h

0.5-0.8 %/h

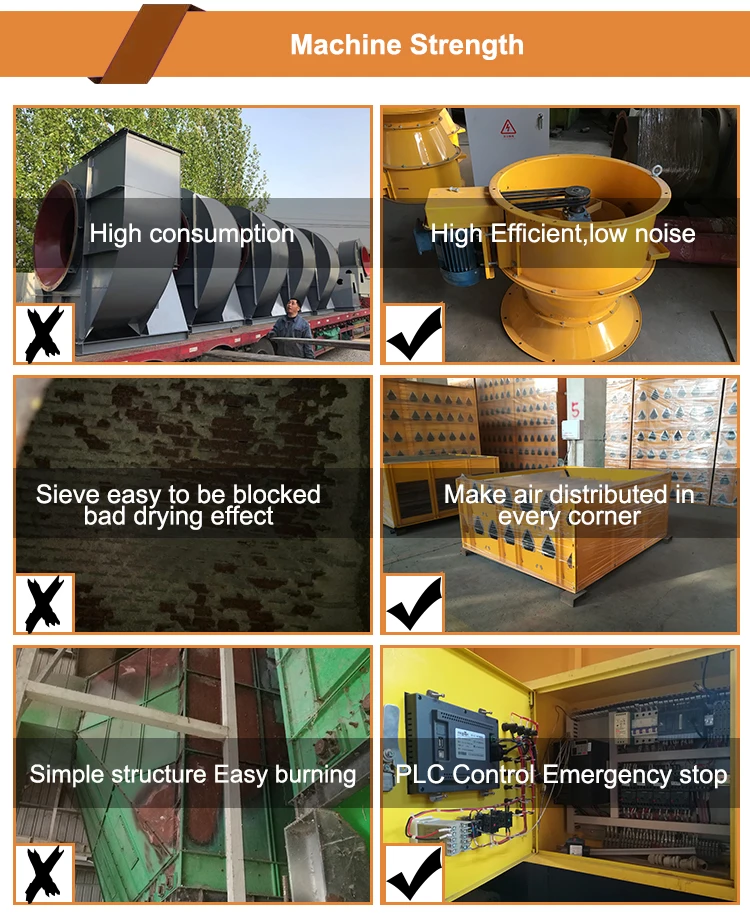

Advantage of Grain Dryer

1. Custom base. When drying larger grain cereals, choose the self-flowing circulation base; when drying the grain with smaller specific gravity, use the base of replace spiral conveyor.
2. Dry all directions. Our grain dryers use a unique air intake method to allow even air to be evenly distributed in every corner,ensure the quality of dried grain.
3. High water evaporation rate.When the seeds are drying, the water evaporation rate can reach 0.8% and the germination rate is 86%. Other type grain drying equipment can only reach 0.7% and the seed germination rate is not guaranteed.
4. High efficiency and energy saving. If we use coal to dry, our grain dryer only needs 20-25 kg per hour, but other types of dryers need at least 200 kg of coal per hour.
5. No need to clean up the adjustment. Other type grain dryers are not ideal because of the drying effect, so adjustments are required,each adjustment takes about 3-6 days; our grain dryer does not need to be adjusted.
6. Drying water is easy to control. Other type grain dryers are not enough to dry the grain, and some grain is burnt, but some of the grain is still very moist. Our grain dryer will automatically stop after setting the dry water, which will not cause burntness.

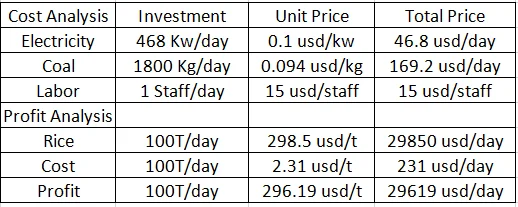

This grain dryer has four heating way:Diesel Burner,Electric Burner,Biomass Stove,Natural Gas Burner.We can recommand the best burner for you.The consumption as below:Diesel fuel 10 kg/h OR Natural Gas 12m3/h OR Coal 20 kg/h OR Electric 116 kw/h.Here attached the analysis below for you check:

Packaging & Shipping



Any question,please feel free to contact me.

Our Services



FAQ



Q:What's your grain dryer can do?

A:Our grain dryer can drying cereals like Rice, wheat, barley, buckwheat, barley, corn, soybean, mung bean, broad bean, red bean, black bean, sorghum, millet, rapeseed, sunflower seed, etc.

Q:How long time the grains are dried?

A:It is about 100 minute from the grains are put to out.

Q:What's your heating way for suppling grain dryer?

A:Wood chips,Rice husk,Peanut sheller,Natural gas,Diesel oil,ect.

The consumption as below:Diesel fuel 10 kg/h OR Natural Gas 12m3/h OR Coal 20 kg/h OR Electric 116 kw/h.

Q:Can we visit your factory?

A:Yes.Welcome to our factory. Our factory located in Zhengzhou city, Henan, china.

Company Information

 Zhengzhou Shuliy Machinery Co.,Ltd ,established in 2010,is a professional manufacturer.We located in Zhengzhou city with convenient transportation. In recent years, our company has introduced a series of advanced equipment including plastic pellet making machine,Egg tray making machine,Hydraulic Baler,Fiber Extracting machine,Fertilizer machine,Copper wire recycling machine,Shredding machine etc. In addition, we have obtained ISO,QUALITY,CE certificates.Our products are also exported to clients in such countries as Nigeria,Cameroon,Pakistan,Congo,Ghana,India,Philippines,Malaysia,Indonesia,Canada,Australia,Congo,Nigeria,Sudan,Saudi Arabia,,India,Russia,Mongolia,Kazakhstan and other countries.

We also welcome OEM and ODM orders. More request, you can talk to our customer service center about your purchasing requirements.
